Fiber Optic Patch Panels

Fiber Optic Patch Panel, Fiber Optic Enclosure,  Wall Mounted Fiber Optic Patch Panel, Rack Mounted Fiber Optic Patch Panel, SC, ST, FC, LC, E2000.

Fiber Optic Cable Products supplies offers flexible options for our High Fiber Count Patch panels

· Slide-out tray holds 3 adapter panels for 12, 24, or 36 duplex LC port configurations

· Multiple internal mounting holes for cable tie-down, fiber management or splice tray mounting

· Available in 1RU, 2RU, 3RU, and 4RU Configurations,  height 19” mount converts to 23” frame

· Hinged front and rear doors

Fiber optic patch panel is an integrated unit for fiber management, we offer wall mounted fiber optic patch panel and rack mounted fiber optic patch panels, these equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection.

Our wall mounted fiber patch panels accommodate up to 8 modular panels and is equipped with routing guides to limit bend radius and enhance strain-relief control. The 16-gauge steel with corrosion-resistant black powder finish coat housing provides excellent protection for the inside fibers. Wall-mount available unloaded, as well as having the capability to become a full-splice enclosure with mechanical terminations. A large variety of connector adapters are offered to meet your specific requirements. Such as SC, FC, ST, LC, etc, we can also pre-install various kinds of fiber optic pigtails inside the patch panel. We offer a series of changeable inside panels to fit for different kinds of the adaptor interface, and fit for both round and ribbon fiber optic cables.
Our rack mounted fiber patch panels can be drawer type or economic type without draw design.

Features:
19-inch standard size, light in weight and robust structure
Changeable modules inside
Suitable for both ribbon and round cable
With various panels to fit different adaptor interface
Improved design to assure fiber optic cable bend radius not less than 40mm

Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process:

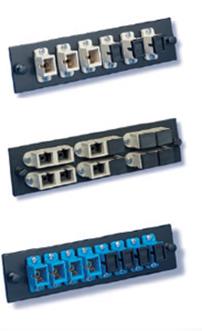

Fiber Optic Adapter Plates

Fiber Optic Cable Products supplies Adapter plates are able to fit all Corning patch panels using one of our plate adapters.  Our Fiber Optic Adapter plates fit all of our patch panels and wall mount termination panels. LGX fiber optic adapter plates

· Meets all applicable compliance standards TIA/EIA –568-B

· Allows the installer the ability to add or change connector styles

· Adapter plates feature multiple-style adapters

· Plastic plungers allow for fast, easy, tool-free installation

Provides 6, 8 or 12 ports for ST, FC, LC, MT-RJ and MTP, MPO QuickPort Adapters

Fiber Optic Adapter Plates

Fiber Optic Cable Products supplies Adapter plates are able to fit all Corning patch panels using one of our plate adapters.  Our Fiber Optic Adapter plates fit all of our patch panels and wall mount termination panels. LGX fiber optic adapter plates

· Meets all applicable compliance standards TIA/EIA –568-B

· Allows the installer the ability to add or change connector styles

· Adapter plates feature multiple-style adapters

· Plastic plungers allow for fast, easy, tool-free installation

Provides 6, 8 or 12 ports for ST, FC, LC, MT-RJ and MTP, MPO QuickPort Adapters

LGX, MTP Cassette Holder


Fiber Optic Cable Products supplies offers flexible options for our MTP/MPO Cassette Holders

· Holds 3 Cassettes for 12, 24, MTP Cassettes.

· Multiple internal mounting holes for cable tie-down, fiber management Rack mounting.

· Available in 1RU, 2RU, 3RU, and 4RU Configurations,  height 19” mount converts to 23” frame

· Hinged front doors, screw down top.

Fiber Optic Patch Panels


Fiber Optic Cable Products supplies offers flexible options for our High Fiber Count Patch panels

· Slide-out tray holds 3 adapter panels for 12, 24, or 36 duplex LC port configurations

· Multiple internal mounting holes for cable tie-down, fiber management or splice tray mounting

· Available in 1RU, 2RU, 3RU, and 4RU Configurations,  height 19” mount converts to 23” frame

· Hinged front and rear doors

Fiber Optic Patch Panels


Fiber Optic Cable Products supplies flexible options for our High Fiber Count Patch panels

· Slide-out tray holds 3 adapter panels for 12, 24, or 36 duplex LC port configurations

· Multiple internal mounting holes for cable tie-down, fiber management or splice tray mounting

· Available in 1RU, 2RU, 3RU, and 4RU Configurations,  height 19” mount converts to 23” frame

· Hinged front and rear doors

Fiber Optic Cables

Toll Free (877)-320-3143

Call  (321)-473-8933

For Fiber Optic Cables and a fiber optic distribution companyUSA manufactured Fiber Optic CablesRoHS Compliant Fiber Optic CablesFiber Optic Cables
FibertronicsFiber Optic GSA Contract supplierFlowchart: Alternate Process: Fiber Optic Cables

PATCH PANELS

PART#

DESCRIPTION

RU

ADAPTER PLATES

PRICE

FT-1RU2AP

1U 19” Patch Panel,  Holds 2 Adapter Plates

1

2

$64.95

FT-1RU3AP

1U 19” Patch Panel,  Holds 3 Adapter Plates

1

3

$74.95

FT-2RU6AP

2U 19” Patch Panel,  Holds 6 Adapter Plates

2

6

$89.95

FT-3RU9AP

3U 19” Patch Panel,  Holds 9 Adapter Plates

3

9

$120.95

FT-4RU12AP

4U 19” Patch Panel,  Holds 12 Adapter Plates

4

12

$175.95

SWING OUT PATCH PANELS

The 12 and 24 port swing out rack mount enclosures make easy termination of fibers.  The front panel swings out to expose all the internal parts of the patch panel.  Giving easy access to the fusion splice tray assembly.  Constructed from 16 gauge steel.  Holds Fibertronics Adapter Plates.

PART#

DESCRIPTION

PRICE

FT-1RUSW12

12 Fiber 1U Swing out Patch Panel  (2 Adapter Plates)

$71.40

FT-2RUSW24

24 Fiber 2U Swing out Patch Panel  (4 Adapter Plates)

$105.20

MTP Cassette Holders.

The 12 and 24 port swing out rack mount enclosures make easy termination of fibers.  The front panel swings out to expose all the internal parts of the patch panel.  Giving easy access to the fusion splice tray assembly.  Constructed from 16 gauge steel.  Holds Fibertronics Adapter Plates.

PART#

DESCRIPTION

PRICE

PP1UCASS

1U Rack mount Cassette Holder for 19” Rack

$89.50

FT-2RUSW24

4U Rack mount Cassette Holder - Unloaded 19" Rack

$275.00

FIBER OPTIC LGX ADAPTER PLATES

ST Plates

PART#

DESCRIPTION

ADAPTER COLOR

PRICE

FT-BLANK

Blank Plate with no holes, Cover Plate



$2.85

FT-STBLK

ST 6 Port (Core) Plate (Unloaded)

Metal

$2.85

FT-ST6LMBLK

ST 6 Port (Core) Plate, Multimode w/ 6 ST Adapters

Metal

$17.00

FT-ST6LSBLK

ST 6 Port (Core) Plate, Singlemode w/ 6 ST Adapters

Metal

$22.85

FT-ST8BLK

ST 8 Port (Core) Plate (Unloaded)

Metal

$2.85

FT-ST8LMBLK

ST 8 Port (Core) Plate, Multimode w/ 8 ST Adapters

Metal

$18.65

FT-ST8LSBLK

ST 8 Port (Core) Plate, Singlemode w/ 8 ST Adapters

Metal

$26.98

FT-ST12LSBLK

ST 12 Port (Core) Plate, Singlemode w/ 12 ST Adapters

Metal

$32.98

FC Plates

FT-FCBLK

FC 6 Port (Core) Plate (Unloaded)

Metal

$2.85

FT-FC6LMBLK

FC 6 Port (Core) Plate, Multimode w/ 6 FC Adapters

Metal

$30.10

FT-FC6LSBLK

FC 6 Port (Core) Plate, Singlemode w/ 6 FC Adapters

Metal

$33.28

FT-FCAPC6LBLK

FC/APC 6 Port (Core) Plate, Singlemode w/ 6 FC/APC Adapters



$38.40

FT-FC8BLK

FC 8 Port (Core) Plate (Unloaded)

Metal

$2.85

FT-FC8LMBLK

FC 8 Port (Core) Plate, Multimode w/ 8 FC Adapters

Metal

$34.10

FT-FC8LSBLK

FC 8 Port (Core) Plate, Singlemode w/ 8 FC Adapters

Metal

$37.28

FT-FCAPC8LBLK

FC/APC 8 Port (Core) Plate, Singlemode w/ 8 FC/APC Adapters

Metal

$41.40

FT-FCAPC12LBLK

FC 12 Port (Core) Plate, Singlemode w/ 12 FC Adapters

Metal

$51.40

SC Plates

FT-SCBLK

SC 6 Port (Core) Simplex Plate (Unloaded)



$2.85

FT-SC6LMBLK

SC 6 Port (Core) Simplex Plate, Multimode w/ 6 Beige SC Adapters

Beige

$17.00

FT-SC6LMABLK

SC 6 Port (Core) Simplex Plate, Multimode 10Gb w/ 6 Aqua SC Adapters

Aqua

$22.85

FT-SC6LSBLK

SC 6 Port (Core) Simplex Plate, Singlemode w/ 6 SC Blue Adapters

Blue

$22.85

FT-SCAPC6LBLK

SC 6 Port (Core) Simplex Plate, Singlemode w/ 6 SC/APC Green Adapters

Green

$26.00

FT-SC8BLK

SC 8 Port (Core) Simplex Plate (Unloaded)



$2.85

FT-SC8LMBLK

SC 8 Port (Core) Simplex Plate, Multimode w/ 8 Beige SC Adapters

Beige

$19.40

FT-SC8LMABLK

SC 8 Port (Core) Simplex Plate, Multimode 10Gb w/ 8 Aqua SC Adapters

Aqua

$26.98

FT-SC8LSBLK

SC 8 Port (Core) Simplex Plate, Singlemode w/ 8 Blue SC Adapters

Blue

$26.98

FT-SCAPC8LBLK

SC 8 Port (Core) Simplex Plate, Singlemode w/ 8 SC/APC Green Adapters

Green

$28.95

FT-DSCBLK

SC 12 Port (Core) Duplex Plate (Unloaded)



$2.85

FT-DSC6LMBLK

SC 12 Port (Core) Duplex Plate, Multimode w/ 6 Beige SC Duplex Adapters

Beige

$39.75

FT-DSC6LMABLK

SC 12 Port (Core) Duplex Plate, Multimode 10Gb w/ 6 Aqua SC Duplex Adapters

Aqua

$48.00

FT-DSC6LSBLK

SC 12 Port (Core) Duplex Plate, Singlemode w/ 6 SC Blue Duplex Adapters

Blue

$48.50

FT-DSCAPC6LBLK

SC 12 Port (Core) Duplex Plate, Singlemode w/ 6 SC/APC Green Duplex Adapters

Green

$52.50

LC Plates

FT-DLC6LMBLK

LC 6 Port (Core) Duplex Plate, Multimode w/ 3 Beige LC Duplex Adapters

Beige

$29.20

FT-DLC6LMABLK

LC 6 Port (Core) Duplex Plate, Multimode 10Gb w/ 3 Aqua LC Duplex Adapters

Aqua

$30.55

FT-DLC6LSBLK

LC 6 Port (Core) Duplex Plate, Singlemode w/ 3 LC Blue Duplex Adapters

Blue

$30.55

FT-DLCAPC6LBLK

LC 6 Port (Core) Duplex Plate, Singlemode w/ 3 LC/APC Green Duplex Adapters

Green

$30.55

FT-DLC12LMBLK

LC 12 Port (Core) Quad Plate, Multimode w/ 6 Beige LC Duplex Adapters

Beige

$35.00

FT-DLC12LMABLK

LC 12 Port (Core) Quad Plate, Multimode 10Gb w/ 6 Aqua LC Duplex Adapters

Aqua

$39.00

FT-DLC12LSBLK

LC 12 Port (Core) Quad Plate, Singlemode w/ 6 LC Blue Duplex Adapters

Blue

$49.00

FT-DLCAPC12LBLK

LC 12 Port (Core) Quad Plate, Singlemode w/ 6 LC/APC Green Duplex Adapters

Green

$49.00

FT-DLC24LMBLK

LC 24 Port (Core) Quad Plate, Multimode w/ 6 Beige LC Quad Adapters

Beige

$45.00

FT-DLC24LMABLK

LC 24 Port (Core) Quad Plate, Multimode 10Gb w/ 6 Aqua LC Quad Adapters

Aqua

$59.00

FT-DLC24LSBLK

LC 24 Port (Core) Quad Plate, Singlemode w/ 6 LC Blue Quad Adapters

Blue

$59.00

FT-DLCAPC24LBLK

LC 24 Port (Core) Quad Plate, Singlemode w/ 6 LC/APC Green Quad Adapters

Green

$59.00

MTP / MPO Plates

FT-MTP6LBLK

MTP 6 Port Plate Loaded with Adapters

Black

$78.00

FT-MTP8LBLK

MTP 8 Port Plate Loaded with Adapters

Black

$92.55

FT-MT-RJ6LBLK

MT-RJ 6 Port (Multimode)

Black

$27.00

CORNING  WCH & CCH ADAPTER BRACKET

· Allows use of adapter plates from Fibertronics, Leviton, Multilink, FIS etc.

· Mounting brackets accept adapter plates (dimensions 1 1/4” x 5 1/8”)

· Adapts plates for interconnects such as Corning WCH & CCH series boxes

PART#

DESCRIPTION

PRICE

FT-CCHBK

Corning Adapter Plate

$4.50
