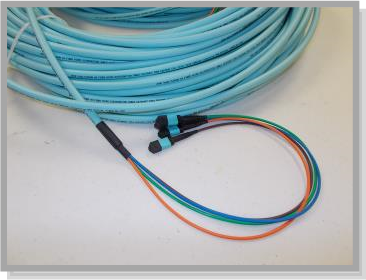

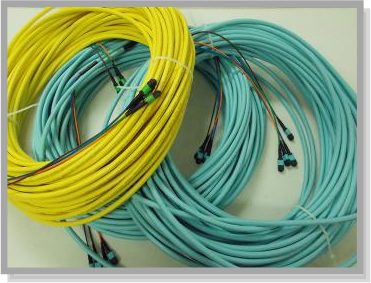

MTP MPO Fiber Optic Trunk Cables
Fiber Optic Cable Products manufactures MPO trunk cables, MPO multi-fiber trunk cables.  These cables can be terminated with any fiber mode, fiber count, custom cable configuration.  2 fiber to 288 fiber counts.  10Gb, 40Gb and 100Gb configurations are also available.

12 fiber optic Trunk Cables terminated with 1 MTP, MPO connector on each side.
24 fiber optic Trunk Cables terminated with 2 MTP, MPO connector on each side.
48 fiber optic Trunk Cables terminated with 4 MTP, MPO connector on each side.
72 fiber optic Trunk Cables terminated with 6 MTP, MPO connector on each side.
96 fiber optic Trunk Cables terminated with 8 MTP, MPO connector on each side.
144 fiber optic Trunk Cables terminated with 12 MTP, MPO connector on each side.

Work Best when Connected to one of our MPO / MTP Cassette Modules. Plug n Play.

Flowchart: Alternate Process: Text Box: L
Text Box: MTT
Text Box: 4
Text Box: 8
Text Box: K
Text Box: 4
Text Box: 9
Text Box: 7
Text Box: 075
Flowchart: Alternate Process: Text Box: P

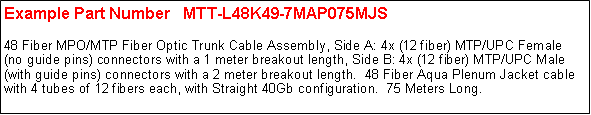

Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process: Text Box: Example Part Number   MTT-L48K49-7MAP075MJS

48 Fiber MPO/MTP Fiber Optic Trunk Cable Assembly, Side A: 4x (12 fiber) MTP/UPC Female (no guide pins) connectors with a 1 meter breakout length, Side B: 4x (12 fiber) MTP/UPC Male (with guide pins) connectors with a 2 meter breakout length.  48 Fiber Aqua Plenum Jacket cable with 4 tubes of 12 fibers each, with Straight 40Gb configuration.  75 Meters Long.

-

Text Box: J

UOM

Length, 3 Digits

Jacket Type

Flowchart: Alternate Process:

Fiber Mode

Cable Type

Side B:

Connector Type

Side A:

Number of Connectors

Side A:

Connector Type

Product Group

Fiber Count

Flowchart: Alternate Process:

Side B:

Number of Connectors

Flowchart: Alternate Process:

Side A:

Breakout Length

Flowchart: Alternate Process:

Side B:

Breakout Length

Text Box: M
Flowchart: Alternate Process:

Jacket Color

Text Box: A
Text Box: M
Text Box: S
Flowchart: Alternate Process:

Pin Configuration

-

MPO MTP Trunk Cables With Corning FiberMTP Trunk Cable OptionsFiber Optic Cables

Toll Free (877)-320-3143

Call  (321)-473-8933

For Fiber Optic Cables and a fiber optic distribution companyUSA manufactured Fiber Optic CablesRoHS Compliant Fiber Optic CablesFiber Optic Cables
FibertronicsFiber Optic GSA Contract supplierFlowchart: Alternate Process: Fiber Optic Cables

Connector  A & B

A

8 Fiber MTP/APC Male (pins)

B

8 Fiber MTP/APC Female

C

8 Fiber MTP/UPC Male (pins)

D

8 Fiber MTP/UPC Female

E

12 Fiber MTP/APC Elite Male (pins)

F

12 Fiber MTP/APC Elite Female

G

12 Fiber MTP/APC Std. Male (pins)

H

12 Fiber MTP/APC Std. Female

I

12 Fiber MTP/UPC Elite Male (pins)

J

12 Fiber MTP/UPC Elite Female

K

12 Fiber MTP/UPC Std. Male (pins)

L

12 Fiber MTP/UPC Std. Female

M

24 Fiber MTP/APC Std. Male (pins)

N

24 Fiber MTP/APC Std. Female

O

24 Fiber MTP/UPC Std. Male (pins)

P

24 Fiber MTP/UPC Std. Female

Q

48 Fiber MTP/APC Std. Male (pins)

R

48 Fiber MTP/APC Std. Female

S

48 Fiber MTP/UPC Std. Male (pins)

T

48 Fiber MTP/UPC Std. Female

U

72 Fiber MTP/APC Std. Male (pins)

V

72 Fiber MTP/APC Std. Female

W

72 Fiber MTP/UPC Std. Male (pins)

X

72 Fiber MTP/UPC Std. Female





Z

Pigtail, No Connector

Break-Out Length

This is the distance from the tip of the connector to the Main Cable Jacket

3

.33 Meter Breakout

2

.5 Meter Breakout

8

1 Meter Breakout

9

2 Meter Breakout

C

Special, Customer Request Length.





Jacket Color

Y

Yellow

Ř

Orange

A

Aqua

M

Multi-Color

B

Black

C

Customer Requested

Jacket Type

R

Riser OFNR

P

Plenum OFNP

L

Low Smoke (LSZH)

V

PVC

Ř

None

C

Customer Requested

UOM

Units of Measurement

M

Meters

F

Feet

C

Centimeters

I

Inches

Fiber Count

G

4 Fibers

E

6 Fibers

F

8 Fibers

C

12 Fibers

D

24 Fibers

J

48 Fibers

K

72 Fibers

L

144 Fibers

X

Special, Customer Requested

Pin-Out Configuration

S

Straight Cable, Key -Up to Key-Down, Pin1 to Pin 1

X

Crossover Cable, Key-Up to Key Up, Pin1 to Pin 12

G

24 Fiber MTP Pin 1 to Pin13

C

Customer Requested, (Custom)

Cable Type

A

Armored

I

Indoor / Outdoor Loose tube

M

Micro Distribution Cable





S

Special, Customer Requested.

Fiber Mode

9

9/125 Singlemode

6

62.5/125 Multimode

7

50/125 Multimode 10Gb OM3

4

50/125 Multimode 10Gb OM4
