Mode Conditioning Fiber Optic Patch Cables



      Fiber Optic Cable Products supplies Mode Conditioning Cables, useful for running Gigabit Ethernet over existing multimode fiber optic plants. Operating at 1300nm and designed to prevent modal dispersion, these cables are centerline offset spliced in a manner which the cores do not align center-to-center, allowing the transition from Singlemode to Multimode. We offer Mode Conditioning Cables with a variety of options, from all types of connectors to different fiber modes to different jackets to different lengths. Browse some of our common options below or call or email us for a quick quote.

Flowchart: Alternate Process: Text Box: D
Text Box: MC
Text Box: D
Text Box: 6
Text Box: D
Text Box: 3
Text Box: 0
Text Box: R
Text Box: 01
Flowchart: Alternate Process: Text Box: M
Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process:

Example Part Number   MC-DD6D3YR01M



SC/UPC to SC/UPC Fiber Optic Mode Conditioning Cable, Multimode 62.5/125µm Duplex with a 3mm Orange Riser Jacket 1 Meter Long.

-

Flowchart: Alternate Process:

Connector A



D= SC/UPC

E= SC/APC

F= E2000

G= E2000/APC

H= FC/UPC

I=  FC/APC

K= LC/UPC

L= LC/APC

S= ST/UPC

Y=MT-RJ

Flowchart: Alternate Process:

Connector B



D= SC/UPC

E= SC/APC

F= E2000

G= E2000/APC

H= FC/UPC

I=  FC/APC

K= LC/UPC

L= LC/APC

S= ST/UPC

Y=MT-RJ

Flowchart: Alternate Process:

Fiber Mode



6= 62.5/125µm Multimode

7= 50/125µm OM3 Laser
Optimized Multimode

4= 50/125µm OM4

Flowchart: Alternate Process:

Cable

Diameter



3= 3mm Jacket

2= 2mm Jacket

4= 900µm (.9mm)

6= 250µm Bare

7= 500µm Bare

Flowchart: Alternate Process:

Jacket Color



Y= Yellow

0(zero)= Orange

A= Aqua

L= Blue

G= Green

E= Brown

S= Slate

W= White

R= Red

B= Black

U= Purple

P= Pink

Flowchart: Alternate Process:

Jacket Type



R= Riser (OFNR)

P= Plenum (OFNP)

L= Low Smoke Zero Halogen (LSZH)

N= None

V= PVC Jacket

Flowchart: Alternate Process:

UOM



Unit Of Measurement

M= Meters

F= Feet

I= Inches

C= Centimeters

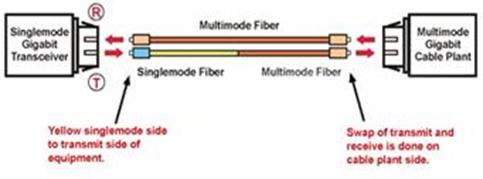

Diagram showing how mode conditioning fiber optic patch cables work. Swap of transmit and receive is done on cable plant side. Multimode to singlemode.Mode Conditioning Fiber Optic Patch Cable.

Product Group

See Connector A

See Connector B

See Fiber Mode

Fiber Count



S = Simplex (1 Fiber)

D= Duplex (2 Fibers)

See Jacket Diameter

See Jacket Color

See Jacket Type

Length



Total Cable Length

See UOM

Fiber Optic Cables

Toll Free (877)-320-3143

Call  (321)-473-8933

For Fiber Optic Cables and a fiber optic distribution companyUSA manufactured Fiber Optic CablesRoHS Compliant Fiber Optic CablesFiber Optic Cables
FibertronicsFiber Optic GSA Contract supplierFlowchart: Alternate Process: Fiber Optic Cables

SC-SC 62.5 MM Mode Conditioning Cables

PART#

LENGTH

PRICE

SC/SC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 1 Meter Long

MC-DD6D30R01M

1 Meter long

$69.00

SC/SC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 2 Meters Long

MC-DD6D30R02M

2 Meters long

$70.00

SC/SC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 3 Meters Long

MC-DD6D30R03M

3 Meters long

$71.00

SC/SC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 5 Meters Long

MC-DD6D30R05M

5 Meters long

$73.00

SC/SC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 10 Meters Long

MC-DD6D30R10M

10 Meters long

$83.00

SC/SC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, XX Meters Long

MC-DD6D30RXXM

XX Meters long

Quote

ST-ST 62.5 MM Mode Conditioning Cables

PART#

LENGTH

PRICE

ST/ST 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 1 Meter Long

MC-SS6D30R01M

1 Meter long

$69.00

ST/ST 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 2 Meters Long

MC-SS6D30R02M

2 Meters long

$70.00

ST/ST 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 3 Meters Long

MC-SS6D30R03M

3 Meters long

$71.00

ST/ST 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 5 Meters Long

MC-SS6D30R05M

5 Meters long

$73.00

ST/ST 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 10 Meters Long

MC-SS6D30R10M

10 Meters long

$83.00

ST/ST 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, XX Meters Long

MC-SS6D30RXXM

XX Meters long

Quote

ST-SC 62.5 MM Mode Conditioning Cables

PART#

LENGTH

PRICE

ST/SC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 1 Meter Long

MC-SD6D30R01M

1 Meter long

$69.00

ST/SC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 2 Meters Long

MC-SD6D30R02M

2 Meters long

$70.00

ST/SC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 3 Meters Long

MC-SD6D30R03M

3 Meters long

$71.00

ST/SC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 5 Meters Long

MC-SD6D30R05M

5 Meters long

$73.00

ST/SC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 10 Meters Long

MC-SD6D30R10M

10 Meters long

$83.00

ST/SC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, XX Meters Long

MC-SD6D30RXXM

XX Meters long

Quote

SC-LC 62.5 MM Mode Conditioning Cables

PART#

LENGTH

PRICE

SC/LC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 1 Meter Long

MC-DK6D30R01M

1 Meter long

$69.00

SC/LC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 2 Meters Long

MC-DK6D30R02M

2 Meters long

$70.00

SC/LC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 3 Meters Long

MC-DK6D30R03M

3 Meters long

$71.00

SC/LC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 5 Meters Long

MC-DK6D30R05M

5 Meters long

$73.00

SC/LC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, 10 Meters Long

MC-DK6D30R10M

10 Meters long

$83.00

SC/LC 62.5 Multimode Duplex Mode Conditioning Fiber Optic Patch Cable, 3mm Orange Riser Jacket, XX Meters Long

MC-DK6D30RXXM

XX Meters long

Quote
