Flowchart: Alternate Process: Text Box: K
Text Box: MTF
Text Box: K
Text Box: 7
Text Box: Ø
Text Box: 2
Text Box: A
Text Box: R
Text Box: ØØ3

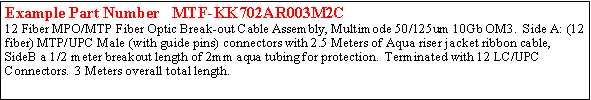

Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process: Flowchart: Alternate Process: Text Box: Example Part Number   MTF-KK702AR003M2C
12 Fiber MPO/MTP Fiber Optic Break-out Cable Assembly, Multimode 50/125um 10Gb OM3.  Side A: (12 fiber) MTP/UPC Male (with guide pins) connectors with 2.5 Meters of Aqua riser jacket ribbon cable,  SideB a 1/2 meter breakout length of 2mm aqua tubing for protection.  Terminated with 12 LC/UPC Connectors.  3 Meters overall total length.

-

Text Box: 2

UOM

Length, 3 Digits

Jacket Type

Flowchart: Alternate Process:

Fiber Mode

Main Cable Type

Side B:

Connector Type

Side A:

Connector Type

Product Group

Fiber Count

Flowchart: Alternate Process:

Side B:

Breakout Length

Flowchart: Alternate Process:

Jacket Color

Text Box: M
Text Box: C
Flowchart: Alternate Process:

Breakout Cable Diameter

MTP MPO Break-Out Cables Fan-Out Assemblies

We Offers single mode and multimode MTP fiber optic patch cables, MTP-LC, MTP-LC/APC, MTP-SC, MTP-SC/APC, MTP-ST, MTP-FC, MTP-FC/APC, MTP-MU,MTP-MT-RJ,MTP-E2000,etc types custom design MTP fiber optic cable assemblies, All fiber modes including 9/125,50/125,62.5/125,SM,MM, with duplexed break-outs. A wide range of  MTP,MPO products including single mode or multimode MPO and MTP Fan-out assemblies.  Multi fiber connections are used to build out Fan-out assemblies.  Available in all fiber modes.  Most common is the 24” fan on a 1 meter cables assembly.  900um tubes can be terminated with all connector types.

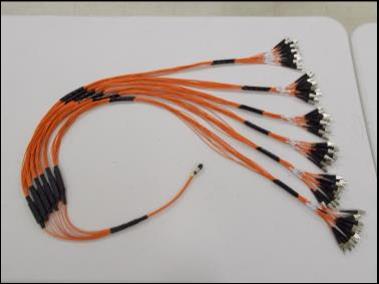

72 Fiber Break-out Cable

FibertronicsCall For Assistance.
MTP Break-Out OptionsFiber Optic Cables

Toll Free (877)-320-3143

Call  (321)-473-8933

For Fiber Optic Cables and a fiber optic distribution companyUSA manufactured Fiber Optic CablesRoHS Compliant Fiber Optic CablesFiber Optic Cables
FibertronicsFiber Optic GSA Contract supplierFlowchart: Alternate Process: Fiber Optic Cables

Connector  A

A

8 Fiber MTP/APC Male (pins)

B

8 Fiber MTP/APC Female

C

8 Fiber MTP/UPC Male (pins)

D

8 Fiber MTP/UPC Female

E

12 Fiber MTP/APC Elite Male (pins)

F

12 Fiber MTP/APC Elite Female

G

12 Fiber MTP/APC Std. Male (pins)

H

12 Fiber MTP/APC Std. Female

I

12 Fiber MTP/UPC Elite Male (pins)

J

12 Fiber MTP/UPC Elite Female

K

12 Fiber MTP/UPC Std. Male (pins)

L

12 Fiber MTP/UPC Std. Female

M

24 Fiber MTP/APC Std. Male (pins)

N

24 Fiber MTP/APC Std. Female

O

24 Fiber MTP/UPC Std. Male (pins)

P

24 Fiber MTP/UPC Std. Female

Q

48 Fiber MTP/APC Std. Male (pins)

R

48 Fiber MTP/APC Std. Female

S

48 Fiber MTP/UPC Std. Male (pins)

T

48 Fiber MTP/UPC Std. Female

U

72 Fiber MTP/APC Std. Male (pins)

V

72 Fiber MTP/APC Std. Female

W

72 Fiber MTP/UPC Std. Male (pins)

X

72 Fiber MTP/UPC Std. Female





Z

Pigtail, No Connector

Break-Out Length

This is the distance from the tip of the connector to the Main Cable Jacket

3

.33 Meter Breakout

2

.5 Meter Breakout

8

1 Meter Breakout

9

2 Meter Breakout

C

Special, Customer Request Length.





Jacket Color

Y

Yellow

Ø

Orange

A

Aqua

M

Multi-Color

B

Black

C

Customer Requested

Jacket Type

R

Riser OFNR

P

Plenum OFNP

L

Low Smoke (LSZH)

V

PVC

Ø

None

C

Customer Requested

UOM

Units of Measurement

M

Meters

F

Feet

C

Centimeters

I

Inches

Fiber Count

G

4 Fibers

E

6 Fibers

F

8 Fibers

C

12 Fibers

D

24 Fibers

J

48 Fibers

K

72 Fibers

L

144 Fibers

X

Special, Customer Requested

Cable Type

Ø

Oval Jacketed Cable

B

Bare Ribbon Cable

E

3mm Round Cable

X

24 Fiber 3.8mm Round Cable

S

Special, Customer Requested.

Fiber Mode

9

9/125 Singlemode

6

62.5/125 Multimode

7

50/125 Multimode 10Gb OM3

4

50/125 Multimode 10Gb OM4

Connector B

D

SC/UPC

E

SC/APC

H

FC/UPC

I

FC/APC

K

LC/UPC

L

LC/APC

S

ST/UPC

C

Customer Requested

Break-Out Cable Diameter

This is the diameter of the tubing on the breakout side.

2

2mm Rugged tubing

3

3mm rugged tubing

4

900um Multi color tubes

6

250um bare fiber

C

Special, Customer Request Length.
