The chassis comes with two high quality hot swappable power supplies. Either power unit can be removed without  interrupting the chassis’ operation - offering total efficiency, maximum redundancy and minimum down time. Each converter  is individually protected in the event of a  problem on the bus or a power surge. Each converter can be removed or loaded without powering down.



Accommodates up to 14 or 16 media converters operating under different protocols
Supports two load sharing, hot swappable power supplies
Two serviceable high volume cooling fans
LED status panel with fan and slot and power LEDs
Supports slot power isolation
14 slot Supports 10/100Base-TX/FX standalone serial converters
16 slot Supports 10/100Base-TX/FX or 10/100/1000Base-TX/FX card serial converters
Available in AC 100-240V with AC Socket or DC -48V with terminal block

StandardsIEEE802.3u 10/100Base-TX, 100Base-FX
Slot Capacity
14/16 Slots (Per slot DC Power Output: 1A @+5VDC)
Ambient Temperature
C to 70°C
Dimensions 90(H) x 424(W) x 230(D) mm (mountable for 19-inch rack)
FCC Part 15 Class A & CE Mark

The maximum power input transceiver module parameters: DC5V/3A (15W)
Largest flapper quantity: 16 modules (average maximum flapper power parameters: DC5V/1.5A)
Normal fan power: 12V/300mA
Power supply with overvoltage and overcurrent protection
Actual power consumption: ≤ 60W
Ambient temperature: 0°C to 50°C
Storage temperature: -40°C to +70 ° C
Humidity: 5 to 90%
Rack Dimensions: L × W × H (482.6mm × 290mm × 88.8mm)

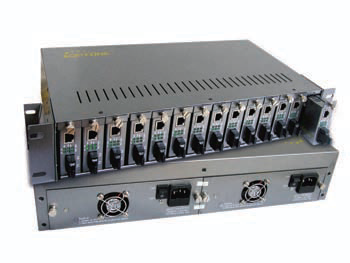

14/16 Slots Chassis Rack

14/16 Slots Chassis Rack


Our FT-R14 chassis provides 14 slots for a standalone 10/100M media converter, while the FT-R16 provides 16 slots for a card 10/100M or 10/100/1000M media converter. Our chassis are equipped with dual cooling fans and optional redundant power supplies to provide continuous operation. The Plug-and-Play and Hot-Swap features allow the installation or removal of the converter unit without powering it off.

Fiber Optic Cables

Toll Free (877)-320-3143

Call  (321)-473-8933

For Fiber Optic Cables and a fiber optic distribution companyUSA manufactured Fiber Optic CablesRoHS Compliant Fiber Optic CablesFiber Optic Cables
FibertronicsFiber Optic GSA Contract supplierFlowchart: Alternate Process: Fiber Optic Cables




14 slots Chassis Rack for stand alone MC      220V


16 slots Chassis Rack for card-type MC       220V


14 slots Chassis Rack for stand alone MC      -48V


16 slots Chassis Rack for card-type MC       -48V
